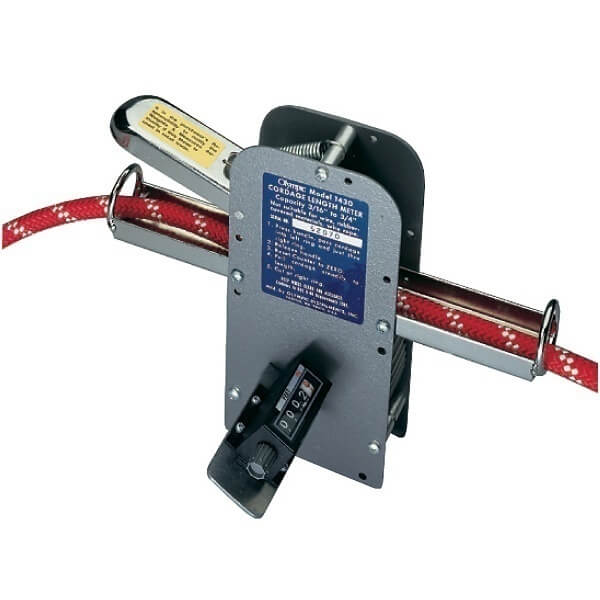

PMI® Cordage Meter

The PMI® Cordage Meter provides accurate, repeatable rope and cordage measurements for professional shops, rescue teams, rope access operations, arborists, and other organizations that regularly cut or dispense rope. Designed for firm mounting to a bench or other stable surface, the meter provides a straightforward way to measure rope as it passes through the unit.

A no-slip toothed measuring wheel maintains positive contact with the cordage, while the guide trough controls rope travel through the meter. The analog counter adds or subtracts as cordage moves through the unit and can be quickly returned to zero with a single turn of the reset knob. Separate models are available for measurement in feet or meters.

Key Features

• Model: 1430
• Available in Feet or Meters configurations
• Analog counter adds and subtracts
• Fast-reset knob returns counter to zero
• No-slip sintered-iron toothed measuring wheel
• No-sag guide trough controls cordage travel
• Polished stainless-steel pressure shoe
• Accommodates rope and cordage from approximately 5/32 in. to 3/4 in. diameter
• PMI specifies compatibility with rope diameters from 6 mm to 20 mm
• Feet model measures up to 999 ft. 11 in. before restarting
• Meter model indicates up to 999.9 m
• Weight: 3.3 lb
• Designed for firm mounting for optimum accuracy
• Not recommended for measuring wire
• Standards/Compliance: National Bureau of Standards H-44 Requirements 1969; Conforms to U.S. and Canadian Weights and Measures Specifications
