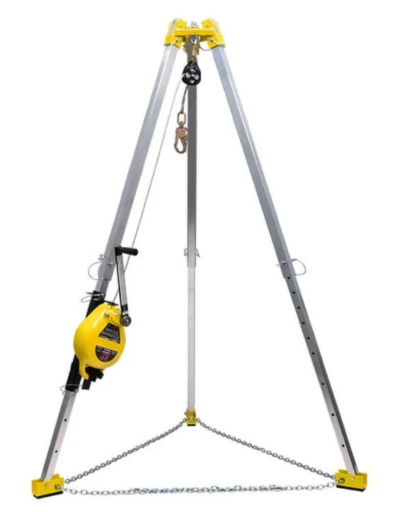

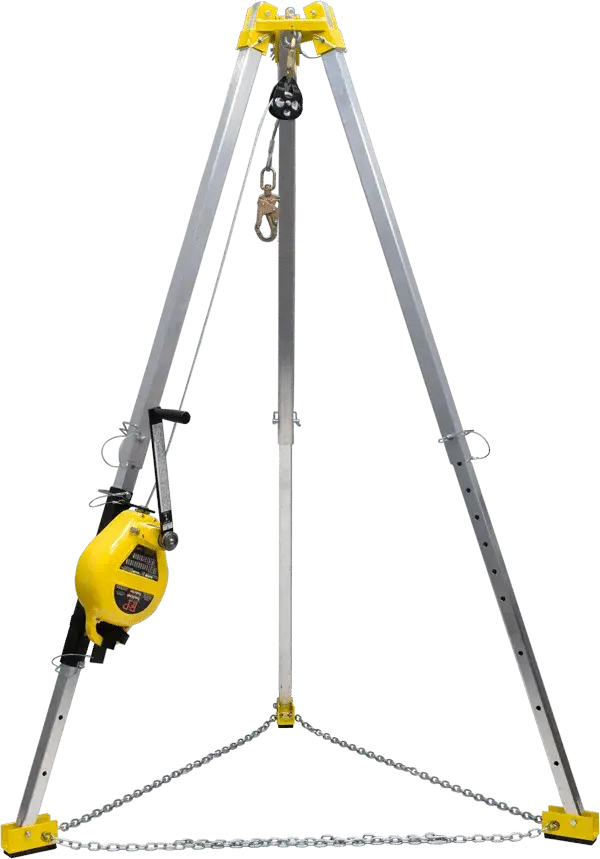

FrenchCreek S50G-7 Confined Space Tripod System

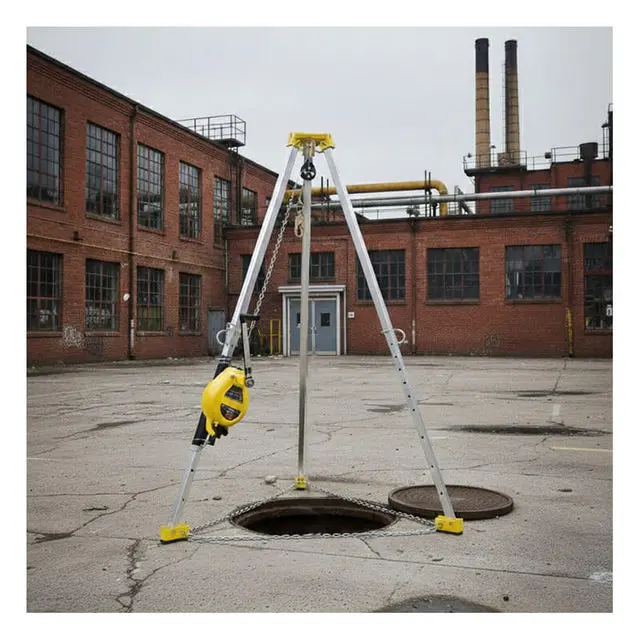

The FrenchCreek S50G-7 is a complete portable confined-space entry and retrieval system combining the TP7 7-foot aluminum tripod with the R50G 50-foot 3-way rescue SRL. Designed for confined-space entry and emergency retrieval applications, the lightweight tripod provides a portable overhead anchorage solution that can be transported and deployed where permanent anchorage systems are unavailable.

The TP7 aluminum tripod features telescoping adjustable legs, non-slip rubber safety shoes, and two attachment points for lifelines. FrenchCreek rates the tripod structure to withstand 5,000 pounds of vertical load, while the complete system supports a 350-pound user weight.

The included R50G 3-way rescue SRL provides fall-arrest capability together with an integral rescue/retrieval function. It uses 50 feet of 3/16-inch galvanized steel wire rope and incorporates a load-indicating swivel snap hook.

System Includes:

• TP7 7-foot aluminum confined-space tripod

• R50G 50-foot 3-way rescue/retrieval SRL

• 50-foot, 3/16-inch galvanized steel wire rope

• Load-indicating swivel snap hook

Key Features:

• Lightweight, portable aluminum tripod

• Telescoping adjustable tripod legs

• Non-slip rubber safety shoes

• Two lifeline attachment points

• 3-way rescue/retrieval SRL

• 350-pound weight capacity

• Tripod structure capable of withstanding 5,000 pounds of vertical load

• FrenchCreek Quick Ship item

Confined Space Tripod Video

Watch the official FrenchCreek Confined Space Tripod System video for an overview of the system and its operation: CONFINED SPACE TRIPOD VIDEO

Specifications

Standards and Compliance
